LED Horicultural Light

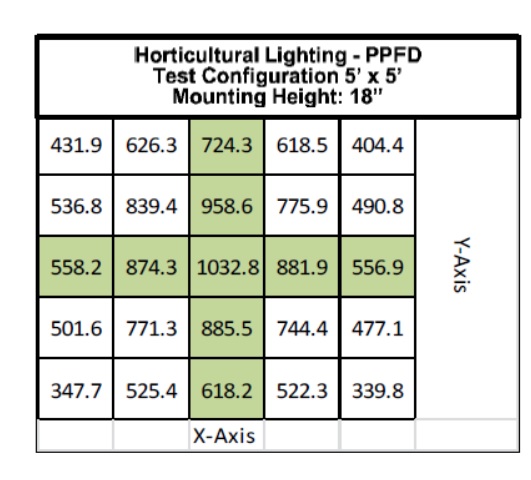

| Performance Set-up: PPFD Measures in umol/s Lamp Mounting Height: 18" (20.3cm) Test Plant Bed: 5 ft x 5ft (1.5 x 1.5 meters) 25 Measurement Points |
| Savings Saves approximately 40% on electricity. No electric spikes compared to HID lighting. Saves 50% or more on heat. Compared to HID. Does not produce thermal night time infrared an no smell. |
| Replacement Cost HID lighting lamps must be changed every year at $70 per fixture. LED comes with a 5-Year Warranty. Cost of HID in a 10,000 SF building = 200 lights x $70 = $14,000 x 5 years = $70,000. |
| Full Spectrum The GL600 Full Spectrum means that the same fixture can do both growing and budding. This is a huge step forward over previous LED grow fixtures that could not do this. |
Ho Chien Introduces and defines the use of LED Grow Lighting greenhouse operations.
- Market leading pricer per Photosynthetic
Photon Flux (PPF) - Compact Design with integrated driver
- Designed for easy mounting
- UL approved for USA & Canada use
- Low heat genderation,
no additional Cooling System required,
savings on water and expensive nutrients - Significant 50%-70% Energy Savings by using
cooler LED technology
General Description

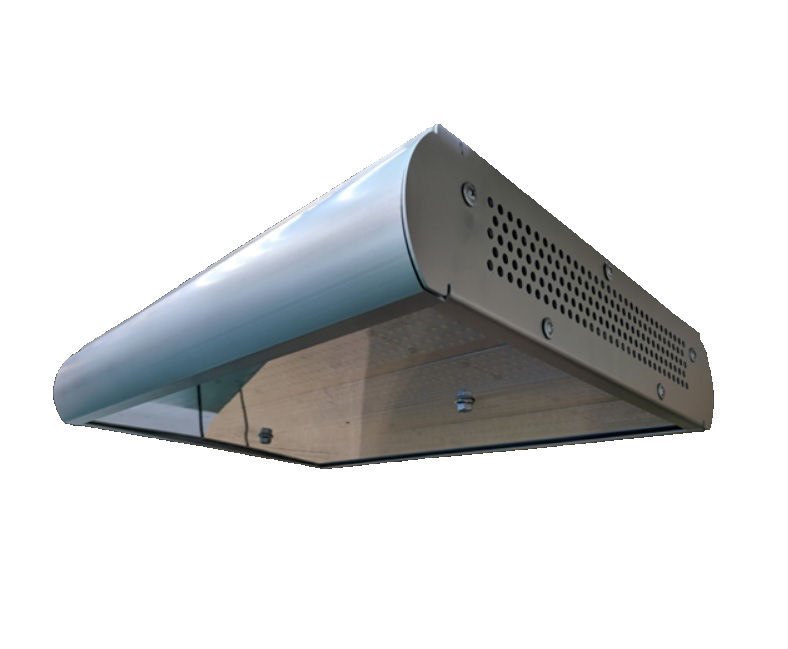

GL600 LED Grow Light is a compact design offered with and
integrated drive. All parts of the fixutre are clear anodized
and hardware is stainless steel to avoid corrosion. It is
designed for easy suspended mount using eye bolts. No
Additional assembly is required as the fixture is ready for
installation and intedned use. All electrical connections are
protected for safe and reliable operation.
Important metrics of a horicultre lighting system

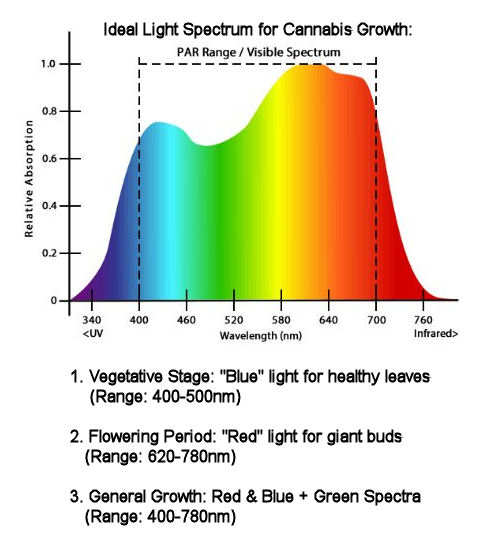

The spectrum to which plants are most sensitive varies with
the species, but for most plants it is very similar to the visual
spectrum to humans sensitivity, approximately 400-700nm
This is the range that stimulates photosynthesis. Any
photons with this spectrum that are absorbed by the plant
will contribute to photosynthesis. But not all wavelengths
have an equal likelihood of being absorbed due to the
various plant pigments present. As with human visions, plants
are more likely to respond to absorb light in specific
wavelengths.
Photosynthetic Photon Flux Density (PPFD) which
measures the amount of PAR that actually arrives at the
plant. PPFD is a 'spot' measurement of a specific location
on your plant canopy. If you want to find out the true light
intensity of a lamp over a designated growing area such as
5 feet by 5 feet, set at the recommended light mounting
height of 18 inches, then take measurements over multiple
locations on the grid and not just the center reading. This
will give the actual PPFD measurements.
Mechanical Construction
GL600 is made up of aluminum extrusion for excellent
thermal management.
The LED boards mount directly to the extrusion and all
wiring from LED boards to the drives. It weighs about
20 lbs. and is 22.5" x 16" (LxWxH)
LEDs
- Full spectrum LED contains wavelengths from 400-
700nm - Three spectra for Vegetative, Flowering and
General Growth
- Photosynthetic Photon Flux (PPF) output (est.)
- General fixture: 887.76 umol/s (micromole/s)
- List to UL 1598 standard for light fixtures
- Complies with OOI UL 8800
- Complies with Canadian Standards CAN/CSA 22.2
No. 250.0 and IEC 62741 - Damp Location Standard
- RoHS Compliant
- Driver suitable for damp and dry locations
- 5-Years from date of purchase
- LM80 50,000 hours
- Voltage: 110V-240V, 277VAC option
- Watts: 600W
- 4.82 Amps @ 110 VAC
- 2.34 Amps @ 277 VAC
- Up to 55°C ambient operation.
