Instructions for retrofitting fluorescent fixtures and installing LED T8 Light Tubes. Long-lasting environmentally-friendly LED replacements for fluorescent tubes.

Tubes with G13 Bi-Pin Bases and Fa8 Single Pin

Re-wiring of the fluorescent fixture for Ho Chiens' LED tube lights should be done only with the advice, guidance, and inspection of a qualified electrician or lighting technician. Installation, operation, and maintenance of the tube lighting fixture is the responsibility the installer/owner/contractor and must comply with state and local codes and regulations.The instructions in these guidelines cannot anticipate all conceivable wiring situations.

TO AVOID THE DANGER OF BEING SHOCKED OR ELECTROCUTED, TURN OFF POWER TO THE FIXTURE AND UNPLUG OR DETACH FIXTURE FROM SOURCE OF POWER.

Unpacking the Ho Chien LED T8 Light Tube

After unpacking and saving packing materials, examine the Light Tube and check for any possible damage that could have resulted from transport. If damaged, notify Ho Chien and return the tube(s) in the packaging.

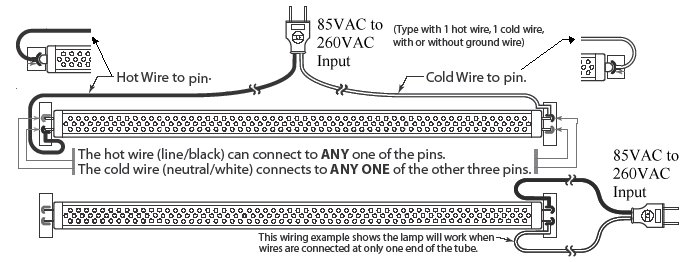

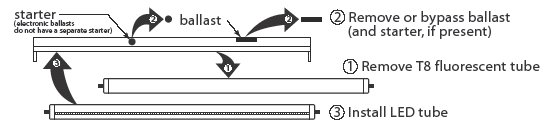

If the fluorescent tube fixture has a ballast (or starter).

If the fluorescent tube fixture has no ballast.

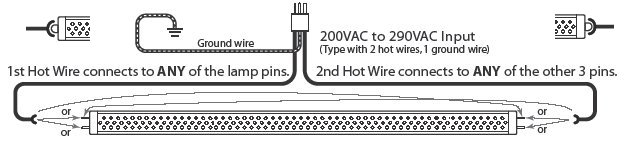

For 208V, 240V, & 277V tube light fixtures that take two hot wires.
